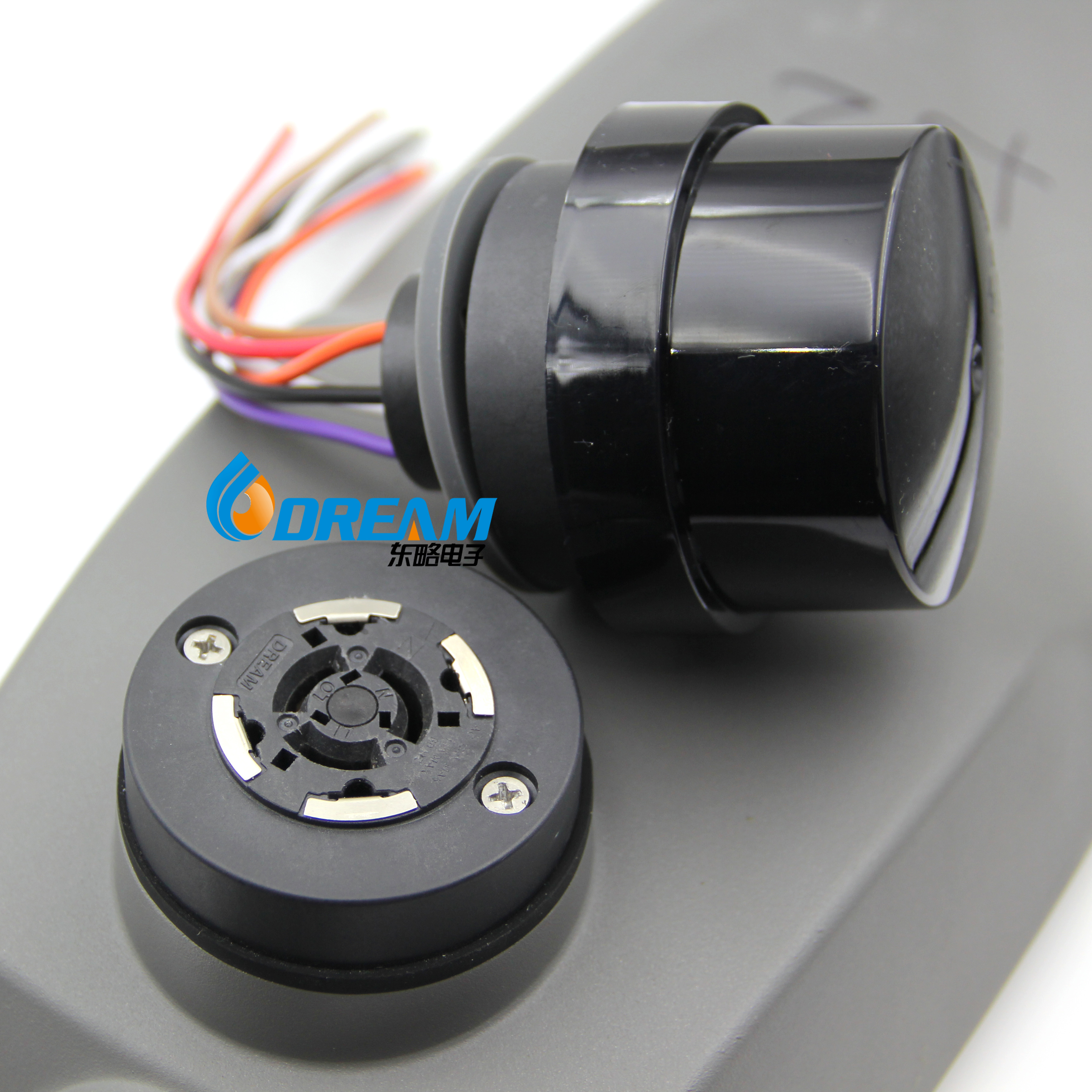

    Photocell Sensor With Auto On Off Photo Control & IP65 Photoelectric Sensor Receptacle Set For Outdoor LED Lighting

    Ask Lasest Price
    Brand Name : DREAM-START
    Certification : UL&CUL(E510435,Vol 1)
    Price : $1.4-2.05/pieces 10-1000pieces
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100000Prpieces
    Delivery Time : 1-10 work days
    • Product Details
    • Company Profile

    Photocell Sensor With Auto On Off Photo Control & IP65 Photoelectric Sensor Receptacle Set For Outdoor LED Lighting

    Specification:

    DR-E03 (Photocontrol) Parameters

    Sensor Type
    Photodiode
    Rated Voltage
    110V~240V AC
    Wide Input Voltage Range
    100V~277Vac
    Working Mode
    <10~20 Lux / ON , >30~60Lux / OFF,Time-delay: 2 Seconds
    Load Current
    16A (220Vac)
    Ambient Temp
    -40℃~105℃
    Size
    φ80.5mm * φ51.6mm(Height)
    Case Material
    UV resistant PC
    Shell Design
    It Conforms to American National Standard ANSI C136.41-2013
    Safety Certification
    E510435,Vol 1 , Contact Us For More Informations
    Life Span
    Quality Assurance for 3 Years
    Applications
    Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting,
    Garden Lighting, Smart City, Smart Street Light, 5G, Smart Pole

    About this item
    Automatically turns light on at dusk and off at dawn. The dusk to dawn sensor is suitable for LED,

    parking lot light, street lighting, outdoor lighting, factory, indoor lighting, pedestrian pathway and landscape lighting.
    IP65 & Surge Protection: The surge protection help to protect the dimmable lamp post from the lightening, high quality

    material shell avoids the internal corroded or damaged, weather-proof and durable.
    Easy Installation: Twist lock design makes it easy to replace and install, just need to plug in a base. Standard prongs

    ensures this photo control sensor could be used with any standard twist-lock style receptacle.
    Time-delay: The photocontrol light sensor designed with 3-20 seconds time-delay. Accurately judges natural light,

    won't be triggered due to lightning or other temporary light.
    UL Listed & Customized Service: This photo sensor for led outdoor light. Our products have passed UL certification.

    We could provide mass customization service for whatever models you want. If you have any question, please feel free

    to contact us.
