    3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle

    Ask Lasest Price
    Brand Name : DREAM-START
    Model Number : DR-E02
    Certification : UL
    Price : $2.3/pieces
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 50000
    Delivery Time : 1-7 work days
    • Product Details
    • Company Profile

    3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle


    Rated Voltage

    110V~240V AC

    Wide Input Voltage Range


    100V~277Vac

    Working Mode

    <10~20 Lux / ON , >30~60Lux / OFF,Time-delay: 2 Seconds

    Load Current

    15A (220Vac)

    Ambient Temp

    -40℃~105℃

    Size

    φ80.5mm * φ51.6mm(Height)

    Shell Design

    It Conforms to American National Standard ANSI C136.41-2013

    Safety Certification

    E510435,Vol 1

    Applications

    Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighting, Smart City


    * 【AUTOMATIC ON/OFF 】 - The photocell sensor senses sunlight, automatically turns on the light at dusk,

    and automatically turns off the light at dawn.

    * 【EASY TO INSTALL 】 - The Dusk to Dawn light sensor just need to plug in a base, twist lock plug for quick installation.
    * 【TIME DELAY FEATURE】 - A preset 2-8 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.
    * 【IP65 & SURGE PROTECTION】 - IP65 waterproof rating.Surge Protection Available, help to protect the lamp from the lightening.Suitable
    for outdoor fittings, such as area lights, parking lot light, shoe box lights, street lights etc.
    * 【WARRANTY】 - Certificate listed for high quality and safe operation. 3-Year Warranty to set your mind at ease.
    The photocell control can open or close light according ambient-light, ambient-temperature and humidity cannot effect it. It's not only
    convenient but also practical, it can be used in the load of working all day and all night. for instant control road light,garden light etc.

    The photocell control is designed with microprocessor circuits with photodiode and a surge arrester (MOV) is provided. It's quicker
    response with time delay of 0-3 seconds offers easy-to-test feature. further, a preset 2-8 seconds time-delay might avoid mis-operation
    due to spotlight or lightning during the night time. the relay has sufficient work life of over 7300cycles.

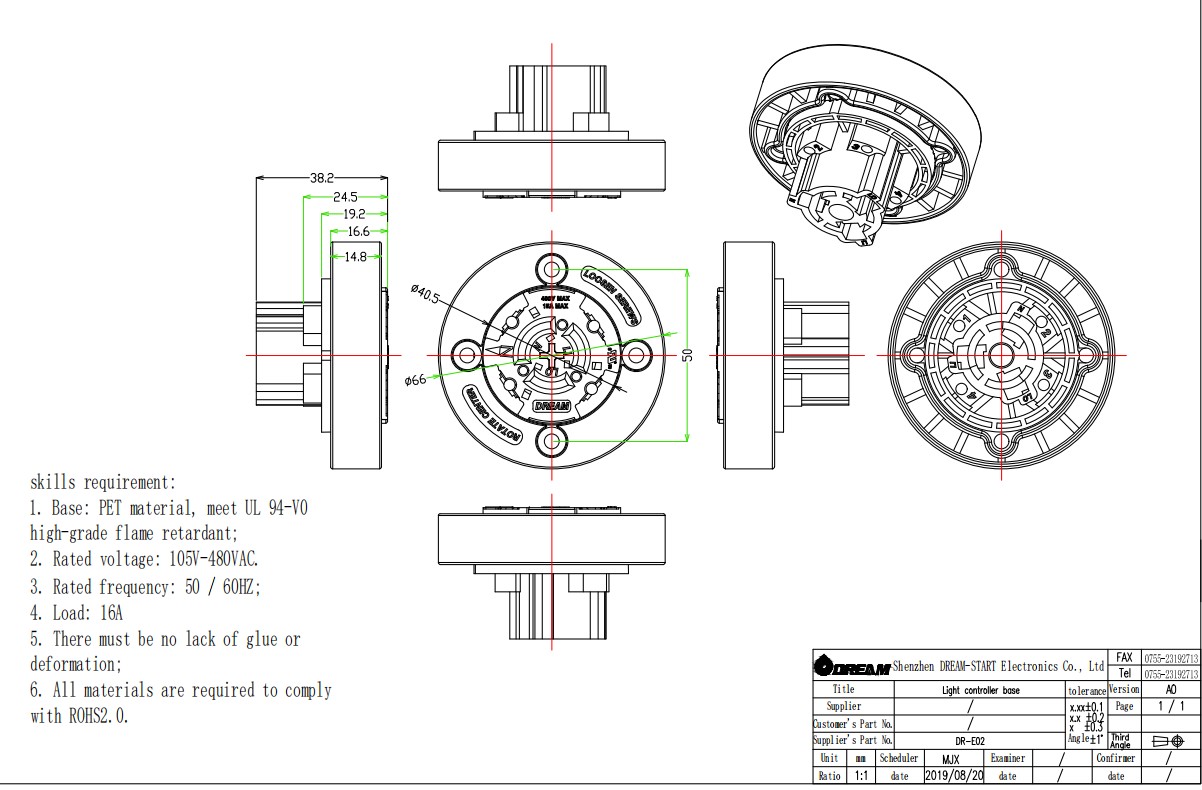

    Use with TWIST-LOCK PHOTOCONTROL RECEPTACLE.(Conforms ANSI C136.41-2013)
    3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
    3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
    Packing & Delivery
    3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
