Smart Wireless Luminaire Controller with Connection Socket
Basic Specification:
DR-E03 (Photocontrol) Parameters | ||
Sensor Type | Photodiode | |
Rated Voltage | 110V~480V AC | |
Reted Frequency | 50/60HZ | |
Working Mode | <10~20 Lux / ON , >30~60Lux / OFF,Time-delay: 2 Seconds | |
Load Current | 16A (220Vac) | |
Ambient Temp | -40℃~105℃ | |
Size | φ80.5mm * φ51.6mm(Height) | |
Case Material | UV resistant PC | |
Shell Design | It Conforms to American National Standard ANSI C136.41-2013 | |
Safety Certification | E510435,Vol 1 , Contact Us For More Informations | |
Life Span | Quality Assurance for 3 Years | |
Applications | Street /Roadway Lighting, Photocontrol Lighting, Parking Lot
Lighting, Garden Lighting, Smart City, Smart Street Light, 5G, Smart Pole | |

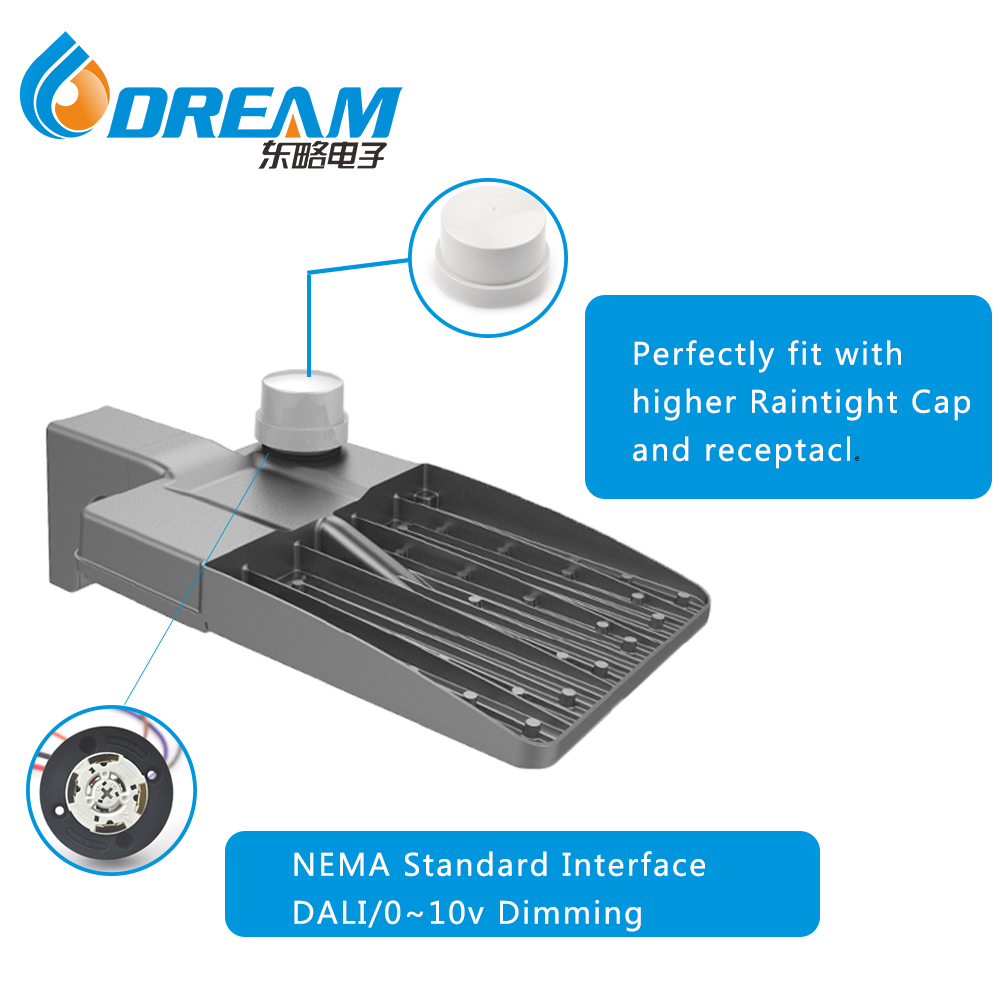

NEMA ( ANSI C136.41 / ANSI C136.10 )
NEMA socket provides an electrical and mechanical connection between the control cell and the luminaire.
ANSI C136 coded standard clearly defines the size of the socket, the type of locking and other details.
NEMA socket is a standardized type of connection across the lighting industry.
NEMA socket has demountable structure. Therefore, this makes it easier to do things like installation,
maintenance and repair. NEMA socket provides a reliable power connection with strong twist lock contacts.
NEMA socket provides the opportunity to adapt to the technology of the future.
The light fixture with NEMA socket is open to new developments. When a new technology is
developed in future control systems, only the control device can be changed without changing
the light fixtures to keep pace with this innovation.
NEMA socket signal contacts can support the 1-10VDC or Digital Addressable Lighting Interface
(DALI) protocol. Intelligence lighting systems which allows remote monitoring, control can be easily
attached to any light fixture when produced in accordance with NEMA socket structure.
NEMA Sockets are made of durable polycarbonate material.
In order to prevent water from entering the body of the
armature,there is a seal at the bottom.
This socket, which can be opened and closedonly by hand without
requiring any tools,
will be the indispensable solution ofsmart city applications of the
future.
NEMA socket is widely used in outdoorlight fixtures, especially
street light fixtures.
Led luminaires are controlled remotely with the cells mounted on the Nema socket, with commands transmitted
to the luminaire driver by a central software. 3 - 5 and 7 pin NEMA socket is preferred according to the control
method used. The most suitable interface can be preferred according to the projects to be made between the
central software and the NEMA socket cell.
The most common interfaces are LoRAWAN, NBIoT, ZigBee ,WI-FI , and Bluetooth 4.0.
|
|
